1416-250-Э

Buy

Specifications

DN, mm	Рр, MPa	Tmax of the Medium, ºC	Body Material, Steel	Working Medium	Max. Kv, m³/h	Max. Pressure Differential, MPa	TQ, N•m, maximum torque at spindle plug	Designation of the electric drive	N, kW	t хода, с.	А, mm	Weight without Electric Actuator, kg	Full Weight, kg
250	23,5	250	15ГС	Вода	233	17,6	1600	МЭОФ-1600/25-0,25У-96К	0,3	25	210	1040	1164

DN - Nominal Diameter
PN - Nominal Pressure
P - Pressure

Tmax - Maximum Design Temperature
Mкр - Spindle Torque
t - Response time
μ - Fluid Flow Coefficient

h - Valve Stroke

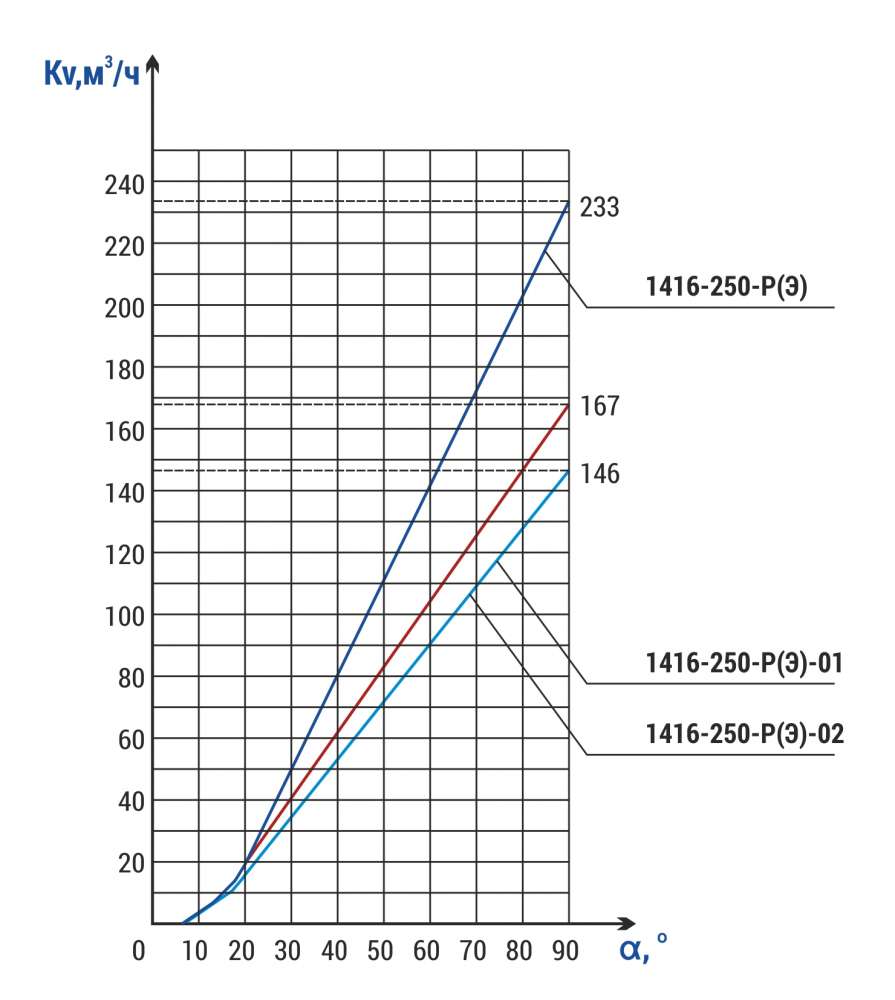

Kv - Throughput Capability
F - Seat Area
ζ - Resistance Coefficient
